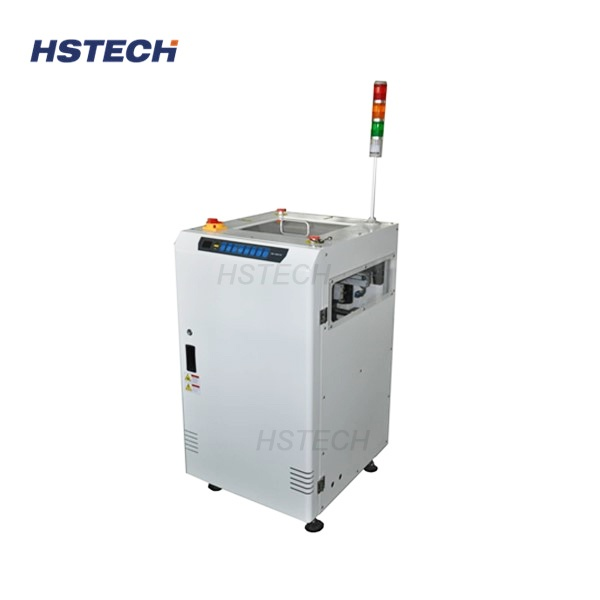

MITSUBISHI PLC Automated PCB Inverter/Flipper Handling Machine

  • 1
  • 2

Brand Name : HSTECH

Model Number : HS-460FL

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 7~9 work days

Packaging Details : Wooden case

Production name : PCB Inverter Machine

Power supply : AC100-230V,single phase,max300A

Optoelectronic switch : Omron

Height adjustment : Feet cup

Display : 3 color display

Warranty : 1 year

Contact Now

MITSUBISHI PLC Automated PCB Inverter / Flipper Handling Machine with Step Motor

Specification

Machine function 180degree PCB invertering
Power supply AC100-230V, single phase, 50/60Hz
Transport belf ESD 7mm belt
PCB dimension (50*50)-(500*460)mm
Air supply 4-6 bar,max 10L/min
Transport height 900±20mm
Transport direction L-R or R-L (optional)
PCB thickness Min 0.4mm
Up/down pitches 1-4(10mm step)
Recycle time around 20 seconds
Communication SMEMA
Machine dimension 600*900*1200mm
Weight 140kg

MITSUBISHI PLC Automated PCB Inverter/Flipper Handling Machine

SMT production line equipment


1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.


Quality MITSUBISHI PLC Automated PCB Inverter/Flipper Handling Machine wholesale

MITSUBISHI PLC Automated PCB Inverter/Flipper Handling Machine Images
