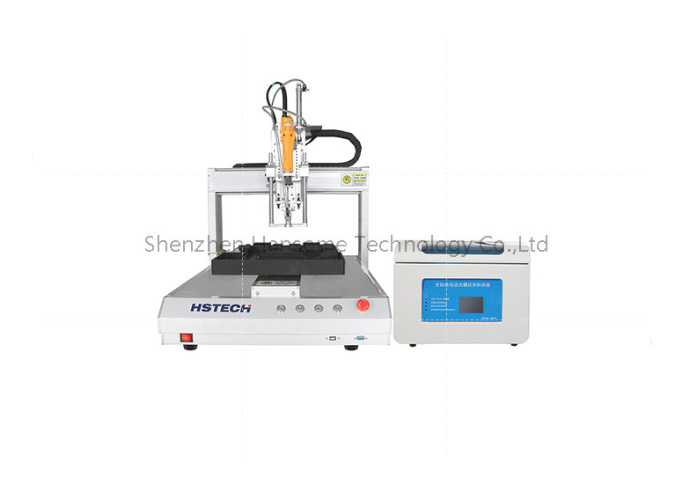

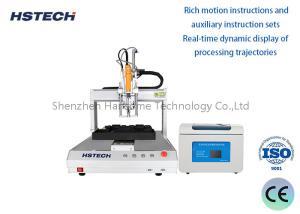

Compact and Versatile Screw Fastening Machine for Automatic Production Lines

  • 1
  • 2

Brand Name : HSTECH

Model Number : HS-SL5331

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100pcs per month

Delivery Time : 7~9 work days

Packaging Details : Wooden package, foam inside

Product name : 4Axis Screw Fastening Machine

Feeding : Suction feeding

Screw feeder : Single, or customized two

Screws compatible : M1-M6, or customized

Moving Range : 500*300*300*100mm

Material : Aluminum

Port : Shenzhen

Warranty : One year

Contact Now

Widely used Screw Fastening Machine with Intelligent Inspection Function

Features

  1. Versatile and Compact: Widely applicable, this unit boasts a small footprint, making it easy to integrate into automatic production lines. Its convenient design facilitates swift product replacements, enhancing production flexibility and efficiency.

  2. Intelligent Inspection Capabilities: Equipped with an advanced inspection system, it automatically identifies and alerts for issues such as missed locks, unstable locks, and loose screws. This ensures precision and reliability in the production process.

  3. Efficient Operator Workflow: Featuring a double Y-platform design, the unit allows operators to load and unload parts alternately, optimizing their workflow and maximizing productivity.

Specification

Model HS-SL5331
Production name 4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 500*300*300*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension 746*585*800mm
Machine weight 65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

About Product

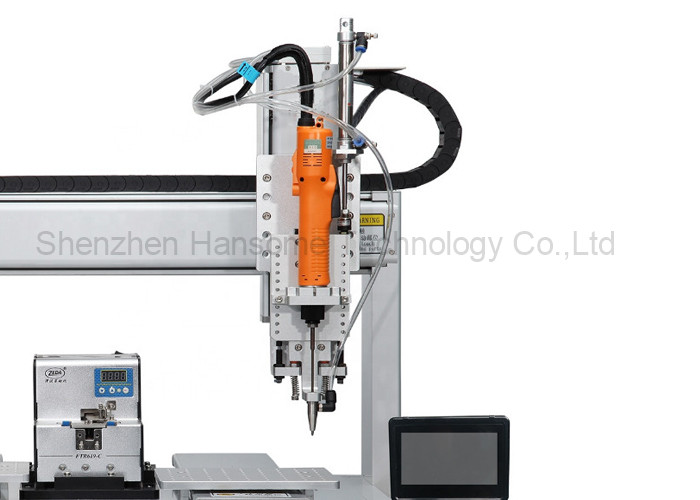

Compact and Versatile Screw Fastening Machine for Automatic Production Lines

About Details

Compact and Versatile Screw Fastening Machine for Automatic Production Lines

Compact and Versatile Screw Fastening Machine for Automatic Production Lines
Compact and Versatile Screw Fastening Machine for Automatic Production Lines

SMT production line equipment


1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
